Mahr Inc. Introduces CD 140 AG 11: Contour Measuring Device with Intelligent Touch Probe System

| Marketing Team

Automated calibration for probe arms and a flexible workpiece holder provide easy handling, while magnetic stylus tip holder allows probe tips to be changed without tools or recalibration.

Mahr Inc., a leading provider of dimensional metrology solutions, has launched MarSurf CD 140 AG 11 today at IMTS 2022, a new machine that enables fast and precise contour measurements. Its unique, intelligent probe system has a 350mm arm, a measuring range of up to 70 mm, and a magnetic stylus tip holder that makes it easy to change probe tips without tools or recalibration.

MarSurf CD 140 AG 11 features an automated calibration routine for probe arms and a flexible workpiece holder that makes it easy to handle. Automatic tracing force selection assures the proper force is used when replacing several stylus tips. Operators can choose from a comprehensive range of clamps and workpiece holders, and this versatile machine can also be used to obtain roughness measurements (Rz>2µm).


X-axis with maximum measuring range
The high-speed X-axis of the new MarSurf CD 140 AG 11 contour measuring machine is designed for a large measuring range of 140 mm and has an X-axis traversing speed up to 200 mm/s. The Y-axis can be adjusted manually with a traverse path of 60 mm. Quick adjustment of the Z-axis, in turn, is performed with an easy-to-use handle. In addition, located above and below the Z-axis is the fine adjustment with which the X-axis can be moved up and down.


Intuitive contour measurements with MarWin software
The integrated MarWin software enables simple, intuitive contour measurements and evaluation. Measuring programs are easy to create with MarWin, and numerous measuring tasks such as determining radii, arc lengths, distances, angles, etc., are already preprogrammed in the new MarSurf CD 140 AG 11. It features a patented "Tangential Elements" function that supports simple, operator-independent evaluation of tangential transitions between radii and straight lines.


Stationary or mobile
Mahr’s new contour measuring device can be used both in the lab and directly at the workpiece. Pluggable guide stops and a wide range of available, standardized clamping devices and workpiece fixtures allow flexible positioning of test specimens with the MarSurf CD 140 AG 11. The 390mm x 450mm support plate with a 50mm bore grid is also suitable for large-volume workpieces, and existing workpiece fixtures can be used. MarSurf CD 140 AG 11 is ideally suited for applications in mechanical engineering, production-related measuring, the automotive industry and medical technology.


IMTS 2022
Visit Mahr at IMTS Booth # 135810 this week to see the MarSurf CD 140 AG 11. Mahr will also be showcasing its new generation of electronic digital comparators, the Millimess 2000 W(i) and 2001 W(i).The new digital comparators combine practical and reliable operation with maximum precision. Using a unique inductive measuring system, measurements are more precise than ever with added probe linearization—whether it’s a static or dynamic measurement task. The new Digimar 817 CLT height measuring device will also be on display, offering an intuitive touch screen, ergonomic handling, and a wide range of evaluation options. The new gage is available in three measuring ranges: 350 mm, 600 mm, and 1,000 mm, with multiple logging and data transfer options for easy measurement data processing.

About Mahr Inc.
When customers are faced with a metrology need, they turn to Mahr Inc., for unmatched industry expertise. Mahr Inc.’s knowledgeable, experienced team has made the company a leader in precision measurement for more than a century.

Mahr Inc., a member of the Mahr Group, has been providing dimensional measurement solutions to fit customer application needs for more than 160 years. The company manufactures, markets and supports an extensive portfolio of dimensional measurement equipment…handheld gages to technically advanced systems, measuring form, contour, surface finish, length and optical metrology solutions for customers within but not limited to aerospace, automotive, medical and optical production industries. Mahr Inc. is also well known as a producer of custom-designed gages and a provider of calibration and contract measurement services. Mahr Inc.’s calibration laboratories are accredited to ISO/IEC 17025:2005 NVLAP Lab Code 200605-0 (see our Scope of Accreditation for accredited calibration processes). For more information, visit

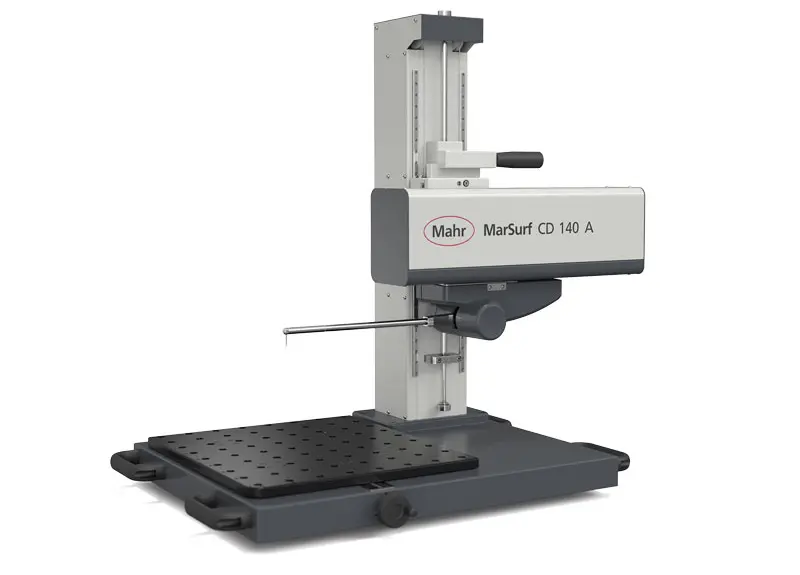

The new MarSurf CD 140 AG 11 contour measuring device makes fast and accurate measurements possible thanks to its flexible workpiece holder.
